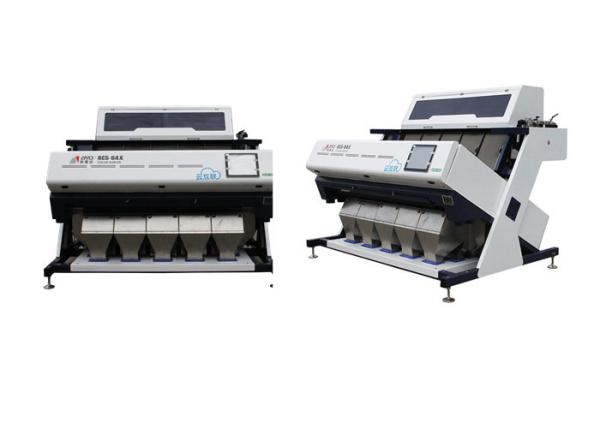

High Accuracy Rice Color Sorter Machine CCD Image Acquisition System

Anhui Zhongke Optic-Electronic Color Sorter Machinery Co., Ltd.
Contact Now
    Buy cheap High Accuracy Rice Color Sorter Machine CCD Image Acquisition System from wholesalers

    Buy cheap High Accuracy Rice Color Sorter Machine CCD Image Acquisition System from wholesalers
    • Buy cheap High Accuracy Rice Color Sorter Machine CCD Image Acquisition System from wholesalers

    High Accuracy Rice Color Sorter Machine CCD Image Acquisition System

    Ask Lasest Price
    Brand Name : AMD
    Model Number : RC5
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C T/T
    Supply Ability : 5000 sets per year
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    High Accuracy Rice Color Sorter Machine CCD Image Acquisition System

    High Accuracy Rice Color Sorter Machine CCD Image Acquisition System


    Rice Color Sorter Machine Introduction


    Rice Color Sorter Machine uses CCD camera sensor for color sorting and grading by different color, shape and size of raw material. Color sorting machine can be applied in field of rice, grain sorting, grading and removal of impurity. Rice Color sorer is also named as CCD rice optical sorter, rice color sorting machine, spectrum sorting machine and rice color cleaning machine.


    Rice Color Sorter Machine Feature

    • Zhongke Big Database
    • Automatic Computing and Super Brain Intelligent Identification
    • 5400Pixel CCD Image Acquisition System
    • Image Processing System
    • Intelligent Dust Cleaning System
    • Self Design High Frequency Ejectors
    • Low Temperature LED Light Source
    • Intelligent LED Control System
    • Remote Control System

    Rice Color Sorter Machine Technical Parameters:


    Model

    Capacity

    (T/H)

    Carryover

    (Bad:Good)

    Accuracy

    (%)

    Voltage

    (V/HZ)

    Power

    (KW)

    Weight

    (KGS)

    Dimension

    (MM)

    RC11-280:1>99.9220/500.5-0.8270875x1550x1320
    RC21.5-380:1>99.9220/500.65-1.14601240x1710x1720
    RC32-480:1>99.9220/500.85-1.46501555x1710x1720
    RC43-680:1>99.9220/501-1.88401870x1710x1720
    RC54-880:1>99.9220/501.3-2.210302185x1710x1720
    RC64.5-980:1>99.9220/501.7-2.812202500x1710x1720
    RC75-1080:1>99.9220/501.9-3.213502815x1710x1720

    Remarks: The above parameters are tested results based on Polished round rice with the sigle chute 1-3T/H capacity. Actual capacity may vary according to raw material contamination ratio.
